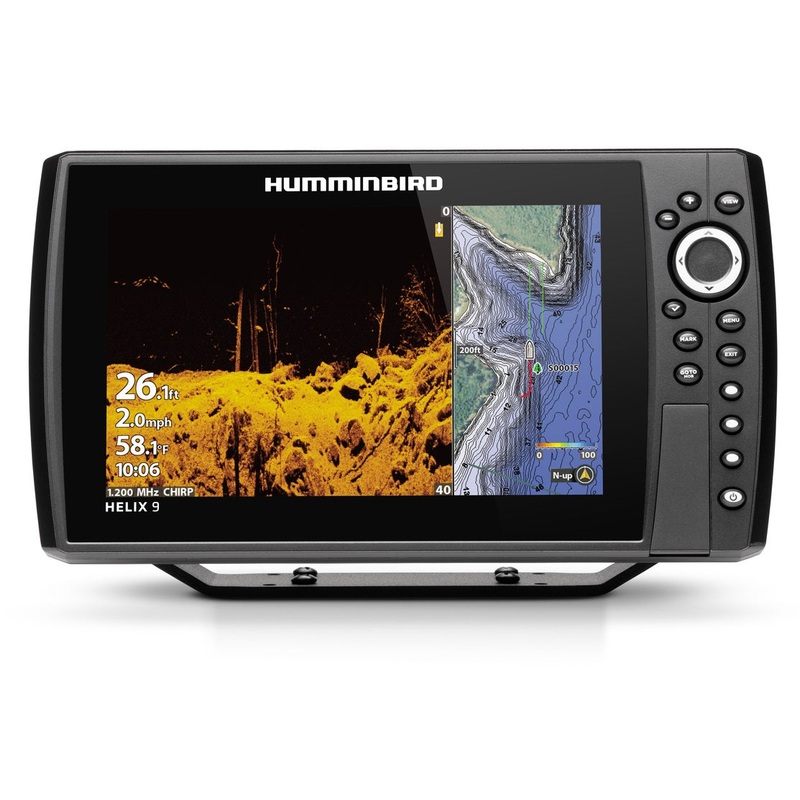

The HELIX 9 CHIRP MEGA DI+ GPS G3N features a 9″ display, MEGA Down Imaging+ and Dual Spectrum CHIRP Sonar. Includes GPS mapping, built-in Bluetooth, Ethernet networking capabilities, AutoChart Live with depth, vegetation and bottom hardness mapping. Fish and navigate with confidence thanks to the guidance of Humminbird Basemap built-in.
| WARNING: This product can expose you to chemicals 1,3-Butadiene which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
- Display Size – Diagonal: 9″
- Display Type: Color TFT
- Display Pixel Matrix: 800H x 480V
- Display Colors Grayscale: 16-Bit
- Sonar-Standard: Dual Spectrum CHIRP, MEGA Down Imaging
- Sonar-Optional: 50 kHz, 50/Low Airmar CHIRP
- CHIRP – Frequencies Supported: Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz)
- Sonar-Frequencies Supported: 50/83/200/455/800 kHz & 1.2 MHz
- Depth-Sonar: 1,200 ft (standard transducer), 3,500 ft (optional 50 kHz)
- CHIRP – Imaging-Frequencies Supported: 455 kHz DI+ (435-535 kHz), 800 kHz DI+ (800-860 kHz), MEGA DI+ (1100-1200 kHz)
- Depth-Down Imaging: 125 ft (800 kHz), 200 ft (MEGA), 400 ft (455 kHz)
- Interface: Keypad Control
- Memory Card Slot: Dual Micro SD
- Power Draw: 1 Amp
- Power Input: 10.8-20 VDC
- Power Output Peak-to-Peak: 8000 Watts
- Power Output RMS: 1000 Watts
- Screen Snap Shot: Included
- Sonar Recording: Included
- Mount-Standard: Gimbal
- Mount-Standard Size: 12.00″ W x 7.0″ H x 4.13″ D
- Mount-Optional: In-Dash Mounting Kit
- Mount-Optional Size: 12.00″ W x 6.63″ H x 1.32″ D
- Transducer Included: XM 9 HW MDI T
- Transducer Mount Location: Transom
- GPS Chartplotting: Included
- GPS Receiver: Internal
- GPS Trackplotting: Included
- Waypoints, Routes, Tracks/Points: 2,500, 45, 50/20,000
- 360 Imaging Compatibility: Yes
- LakeMaster Compatibility: Yes
- Navionics Gold/HotMaps Compatibility: Yes
- Navionics Platinum + Compatibility: Yes
- Radar Compatibility: No
- 5-Port Ethernet Switch Compatibility: Yes
- AIS Compatibility: Optional
- Heading Sensor GPS Compatibility: Yes
- NMEA2000: Optional
- Upgradable Software: Yes
- View Preset Keys: No
- X-Press Menu System: Yes
- Custom Digital Readout: Yes
- Custom View Selections: Yes
- Temperature: Built In
- Temperature Alarm/Graph: Yes
- NEW MEGA Down Imaging+: You’ll unlock more fish and structure with 20% more detail than MEGA Down Imaging Sonar
- Dual Spectrum CHIRP Transducer: Offers two ways to search: wide mode for maximum coverage and narrow mode for maximum detail
- SwitchFire Sonar: With two display modes, you can add or remove detail, account for water depth, temperature and turbulence, even watch lure presentations – all at the push of a button
- Humminbird Basemap Built-in: Identify buoys, day markers, hazards, marinas, contours, depth markers and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the U.S.
- AutoChart Live: Create real-time maps of your fishing spots, with access to patented Humminbird LakeMaster features. Map depth contours, bottom hardness and vegetation as you drive your boat, with eight hours of built-in recording time
- Ethernet Networking: Easily connect multiple fish finders, or upgrade to add-on technologies like Minn Kota i-Pilot Link, 360 Imaging and CHIRP Radar
- Bluetooth: Enable features like wireless software updates from the Humminbird FishSmart App and also keep your phone out of the water and in your pocket by displaying notifications on your Humminbird
- LakeMaster Compatible: Upgrade to the unrivaled accuracy and detail of Humminbird LakeMaster maps. From easy-to-read contours, to highlighted depth ranges and adjustable water levels, you’ll have all the tools you need to make every moment count
In the Box:
- Fishfinder/GPS Chartplotter
- Transducer
- Mounting Hardware
- Power Cable
- Gimbal Mounting Bracket
