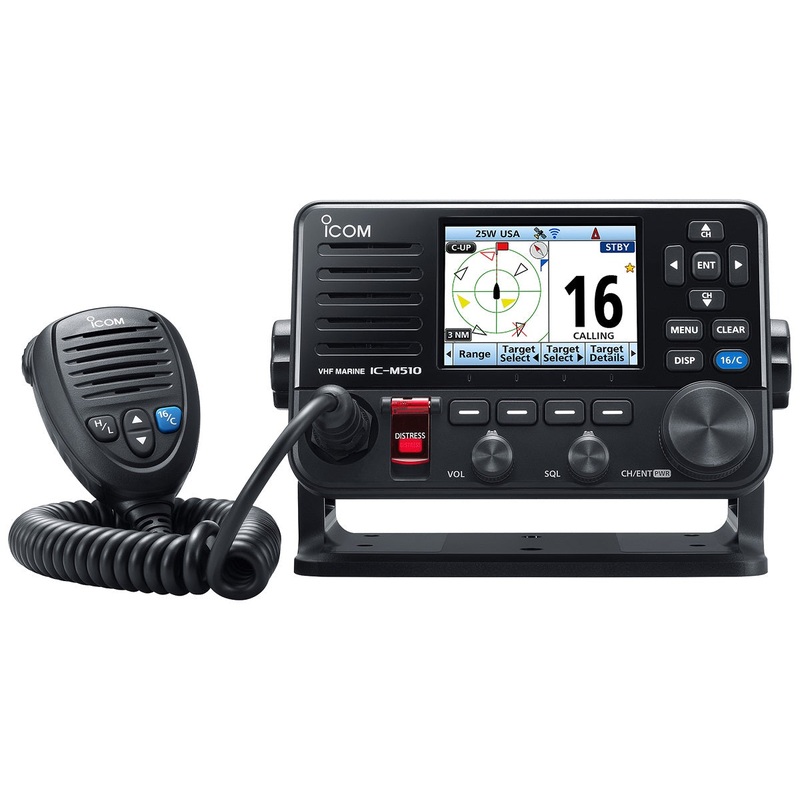

Icom M510 PLUS AIS VHF Radio
Model: M510 PLUS 21 USA
- Active Noise Canceling
- NMEA 0183/HS connectivity
- Integrated GNSS receiver (Selectable from either internal receiver or use UX-241 GNSS antenna)
- IP68 advanced waterproofing (1 m depth of water for 60 minutes)
- Automatic Foghorn function (CT-M500 required)
- Voice Scrambler with optional UT-112A
- AquaQuake prevents audio degradation from a water-logged speaker
- Supplied speaker-microphone, HM-205RB can be connected to the rear panel
- External speaker connection
- Controlled with COMMANDMIC HM-195GB/GW
- Supports 4-digit channels
Icoms new Class D DSC fixed mount VHF marine transceiver, the M510 is a tech-laden powerhouse. The M510 is nearly half the depth of the M506, allowing installation in more confined spaces. The large color display has a simple user interface allowing casual and serious boaters alike with plenty of options to communicate. Additionally, command and control using iOS and Android smart devices with class leading features such as wireless calling.
The M510 includes a full color 3.5″ TFT LCD screen with a near 180-degree viewing angles. The standard marine user interface is enhanced with animated functions and night mode for optimal viewing in the dark.
The RS-M500 app allows you to connect three iOS or Android smart devices to function as a wireless command speaker/microphone. Use the push-to-talk features, scroll/scan channels, as well as use the M510s intercom function from the comfort of the captains seat. Additionally, one COMMANDMIC can connect while 3 other smart devices are linked.
Connect to NMEA 2000 with the optional CT-M500 wireless interface box. If the NMEA connection is on a different part of the boat, the CT-M500 can wirelessly connect with the M510, providing flexibility on placement. Additionally, with the optional SP-37 horn speaker, the CT-M500 can access the two-way hailer/PA functions.
With its integrated AIS receiver or external NMEA sentence (third party AIS receiver, transponder), the IC-M510 can show real-time AIS vessel traffic information on the display. You can directly make an individual DSC call to selected AIS targets from the AIS screen.
Specifications
| General |
| Usable channels |
USA, INT, CAN, WX channels |
| Type of emission |
16K0G3E (FM), 16K0G2B (DSC), 16K0GXW (AIS)* |
| Power supply requirement |
13.8V DC (11.715.9V DC) |
| Current drain TX (25W output) |
5.0A |
| Current drain RX (Max. Audio) |
3.3A |
| Operating temperature range |
20C to +60C; 4F to +140F |
| Antenna impedance |
50 Ohm |
| Transmitter |
| Output power (at 13.8V DC) |
25W, 1W |
| Max. frequency deviation |
+/- 5.0 kHz |
| Frequency tolerance |
+/- 0.5 kHz |
| Spurious emissions |
Less than -70 dBc (at 25W) |
| Residual modulation |
More than 40 dB |
| More than 40 dB |
More than 70 dB |
| Receiver |
| Sensitivity (at 12dB SINAD) DSC (1% BER) |
0.32 V typical 0.89 V emf typical |
| Adjacent channel selectivity DSC (1% BER) |
More than 75 dB More than 73 dB emf |
| Spurious response DSC (1% BER) |
More than 75 dB More than 73 dB emf |
| Intermodulation DSC (1% BER) |
More than 75 dB More than 68 dB emf |
| Hum and noise |
More than 40 dB |
| Audio output power at 10% distortion |
More than 15W with a 4 external speaker |
| Wireless LAN |
| Wireless LAN standard |
IEEE 802.11 b/g/n |
| Authentication and Encryption |
WEP (64/128 bit), WPA-PSK (TKIP), WPA2-PSK (AES) |
| Channels |
1 to 13 (2.4 GHz band)** |
| Output power |
Less than 10 mW/MHz |
What’s in the Box:
- M510 PLUS AIS VHF
- Speaker microphone, HM-205RB
- Microphone hanger
- DC Power Cable
- Mounting Bracket Kit
