ACTIVE IMAGING HD 3-IN-1 FISHREV

000-16060-001

See the Difference

Our clearest sonar ever, Active Imaging HD delivers the highest-definition views of Lowrance CHIRP, SideScan and DownScan Imaging. Experience a new level of clarity and improved target separation with extremely detailed views of fish and fish-holding structure like rockpiles, standing timber, weedbeds, ditches, drop-offs and more.

Complete FishReveal Views

Get the best of CHIRP sonar and Imaging sonar on one display with FishReveal. First introduced with DownScan Imaging, FishReveal is now available on SideScan*, making it quicker and easier to recognize fish targets along with picture-like images of structure on both sides of your boat.

*The FishReveal SideScan view requires an optional S3100 sonar module.

Designed for Clarity

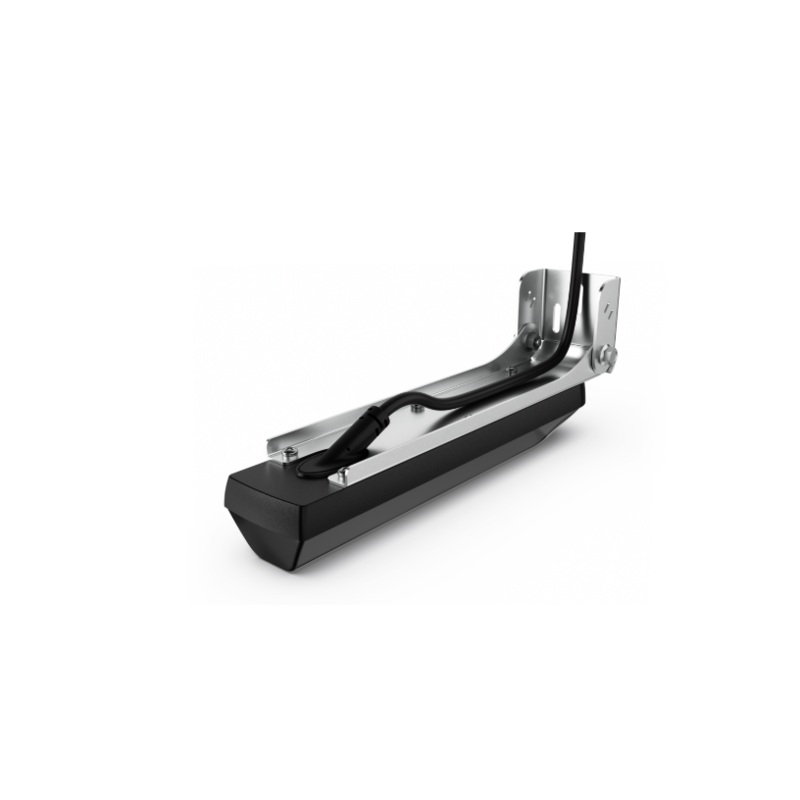

The Active Imaging HD transducer not only delivers three key sonar technologies Lowrance CHIRP, SideScan and DownScan Imaging in one convenient package, but also features a new transducer design that boosts signal clarity.

• High definition (up to 1.2MHz) SideScan and DownScan Imaging deliver the clearest images of fish and structure
• Lowrance CHIRP with superb clarity and target separation
• FishReveal with new SideScan* view as well DownScan
• Supports Medium and High CHIRP (83/200kHz) + 455/800kHz and 455/1.2MHz frequencies
• Smart transducer design boosts signal clarity
• Compatible with Lowrance HDS PRO or with a S3100 module with HDS LIVE, HDS Carbon, Elite FS and Simrad NSSevo3S, NSS evo3 and GO series displays (only on mrad site)
