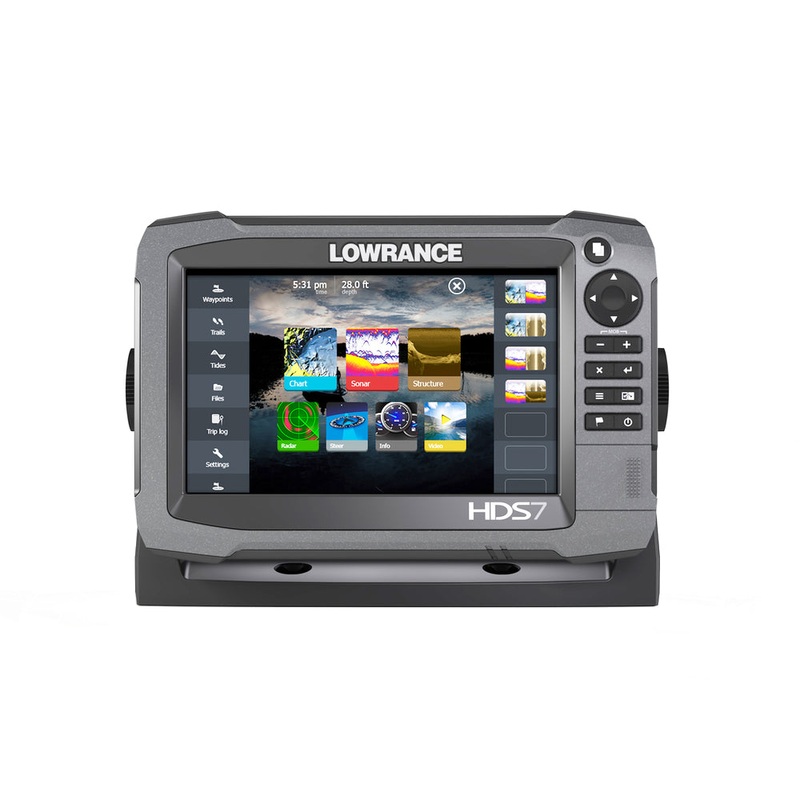

The All-NEW, Lowrance High Definition System (HDS) combines a brighter, multi-touch display and enhanced processor with leading-edge fishfinder technologies — including CHIRP Sonar, Broadband Sounder, StructureScan HD, DownScan Imaging and Trackback view — plus the latest advances in navigation and user interface — including internal 10Hz GPS, dual microSD-card slots, touch-plus-keypad operation and built-in wireless connectivity– all in one easy-to-use display.

• Display Resolution WVGA color TFT LCD 800 x 480
• Display Type” 7″ (16:9) Widescreen
• Display: Backlighting Adjustable Display and Keypad
• Backlighting Type: LED
• GPS and Sonar Overlay Data
• Split Screen Presentation: Max of 4
• Depth Alarm
• EchoSounder Frequencies: 455/800 kHz (StructureScan HD), 40-60kHz, 85-145kHz, 130-210kHz (CHIRP), 50 kHz/83kHz/200kHz
• EchoSounder Max Sonar Depth [m]: 1524
• Shallow Alarm
• Temperature Readings
• Transducer Type: Multiple selections Lowrance and Airmar
• NMEA Output: NMEA 0183 and NMEA 2000
• Power Supply (Supply Voltage): 12 vDC (10-17 vDC min-max)
• Navigation: Routes 200
• Navigation: Waypoint Storage 5000
• GPS Antenna Type: Internal 10Hz ultra-high-sensitivity WAAS + EGNOS + MSAS (optional external antenna)
• Custom Mapping: Insight Genesis, Lake Insight and Nautic Insight PRO and HD, Insight TOPO, Navionics+, Navionics Platinum+,Gold and HotMaps Premium, Fishing Hotspots PRO and Jeppessen C-MAP MAX-N+
• Background Mapping: Built-in Insight for US waters and world reference background map
• Output Power [kW] 500W RMS
• Languages: 36 (Available in regional language packs)
• Media Port: MicroSD-card slots (2) – 32Gb Max size
• Warranty Two Year
