Big enough for use as a standalone display, but compact enough to fit consoles with limited space, the HDS LIVE 7 offers access to the latest Lowrance fish finding innovations with support for Active Imaging, LiveSight real-time sonar, StructureScan 3D with Active Imaging and Genesis Live on-screen mapping.

• Active Imaging 3-in-1 (CHIRP/Side/Down) sonar included
• StructureScan 3D with Active Imaging enhancements – Coming Fall 2018
• LiveSight real-time sonar compatible – Coming Spring 2019
• Smartphone notifications
• High-performance dual-core processor
• C-MAP Genesis Live onscreen mapping
• FishReveal Smart Target View
• High-resolution SolarMAX HD multi-touch screen
• Preloaded high-detail C-MAP US Enhanced charts with 1-foot contours on 4,000 lakes
• C-MAP Easy Routing, Navionics Autorouting capability
• Dual-Channel CHIRP dual sonar-range coverage from the same transducer
• Live Network Sonar
• SiriusXM Marine Weather and Audio compatible
• Wireless and Bluetooth connectivity
• Heat Map Chart Overlay
• Enhanced Surface Clarity
• Quick Access Control Bar
• Touchscreen control of MotorGuide Xi5 9Trolling Motor , Outboard Pilot and Power Pole anchors
• Radar and SonicHub2 audio server connectivity
• NMEA 2000 engine support
• Optional mapping upgrades include C-MAP, Navionics and more

• SD Card Storage: 2 micro SD cards up to 32GB
• Ethernet Ports: 1x 100 Mbit, 6 max MFD’s on a network
• Integrated Bluetooth 4.0 with support for Bluetooth Classic
• GPS: 10 Hz GPS/GLONASS WAAS/EGNOS/MSAS
• 800×480 7″ Touchscreen Display
• Dimensions: 5.73″H x 9.21″W x 3.06″D
• Screen Brightness: 1200 nits
• 16 GPS receiver channels
• NMEA 2000 Connectivity: 1x Micro-C
• 3000 Waypoints | 100 Routes | 100 Trails with up to 10,000 points per trail
• Charts Supported:

  • C-MAP (MAX N, MAX N+)
  • C-MAP Genesis
  • C-MAP Precision Contour HD (AMER ONLY)
  • Navionics (Gold, NAV+ Platinum+)
  • Insight (Pro and HD)
  • Lowrance Regional Mapping Partners

• Cartography Included:

  • C-MAP US Enhanced Basemap (AMER models)
  • C-MAP World Background (ROW models)
  • Navionics basemap (AMER and ROW models)

• Sonar Compatibility:

  • Integrated:

  • CHIRP Broadband Active Imaging
  • DownScan Active Imaging
  • SideScan

  • Compatible With:

  • SonarHub
  • Structure Scan
  • Structure Scan 3D

• Item Connectivity WiFi: Internal 802.11b/g/n and Compatible with WiFi-1 Module
• Autopilot:

  • Outboard Pilot
  • MotorGuide Xi5/Xi3 Trolling Motor**(Requires Motorguide PinPoint Gateway)

• Waterproof Rating: IPX7 (With door closed)
• Steering Modes:

• Course
• Heading
• Waypoint
• Power Steer

• Manouevers Turn Patterns

  • Course
  • Heading
  • Waypoint
  • Power Steer
  • U-Turn
  • C-Turn
  • Spiral
  • Zigzag
  • Square
  • Lazy-S

• VideoOutput: No| Input: Composite video RCA – single channel via optional adaptor
• Warranty: 2 Year + 3 additional years of upgrade options – totaling 5 years

In The Box:

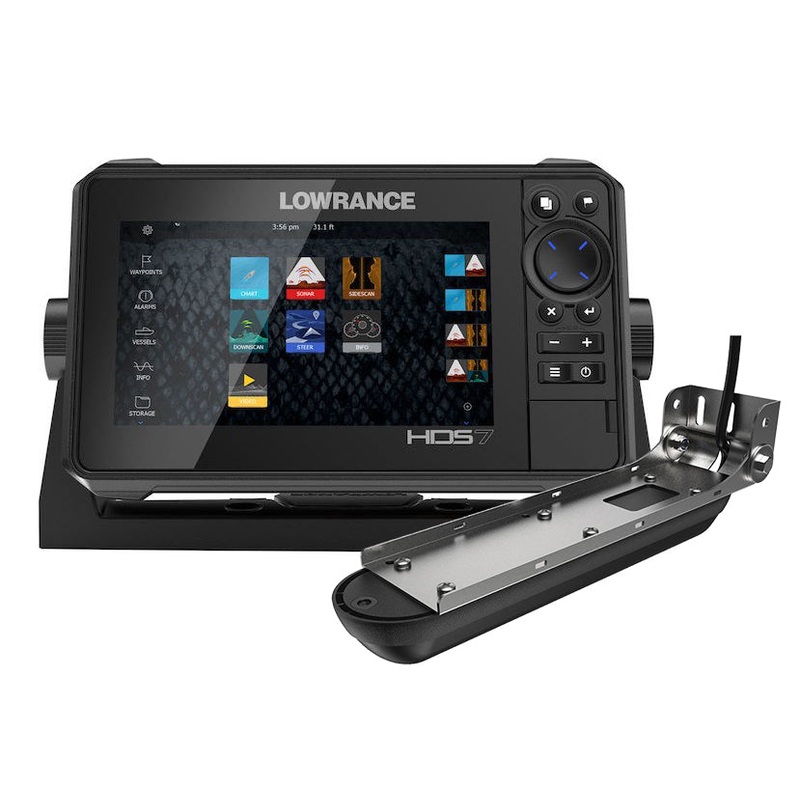

• Lowrance HDS-7 Live Fishfinder/ChartplotterActive
• Imaging 3-in-1 Transducer
• PC-30-RS422 Power Cable for HDS Series
• HDS-7 Live Bracket
• HDS-7 Live Suncover
• HDS-7 Live Bevel & SD Door
